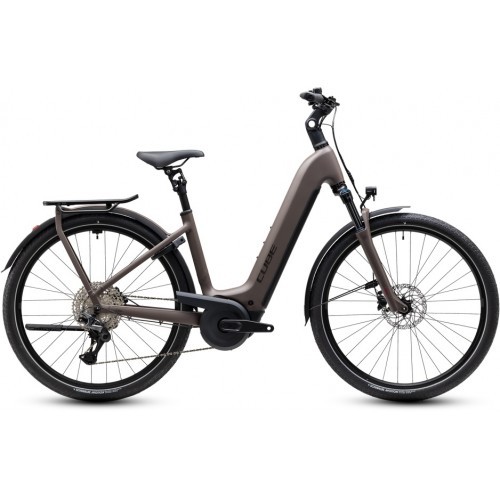

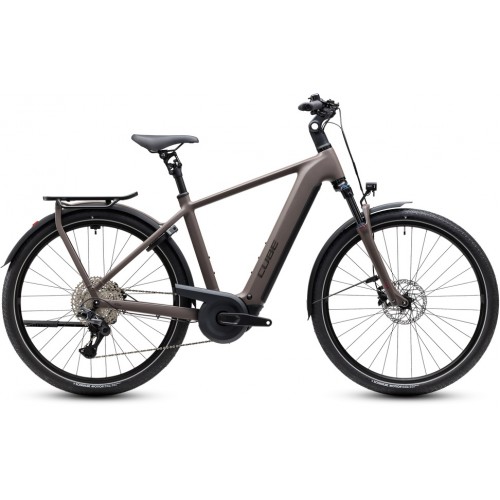

Cube Kathmandu Hybrid ONE 800 cedar´n´chrome - 2027

frame Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, UDH™, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, Integrated Seatclamp
size Classic: 50cm, 54cm, 58cm, 62cm
Suspension

Suspension fork SR Suntour NVX-32 LO Air, Tapered, 15x110mm, 100mm
E-bike system

drive unit Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
Remote Bosch Purion 200 with Integrated Display
battery Bosch PowerTube 800
charger Bosch 2A
Drivetrain & brakes

brake system Shimano BR-MT200, Hydr. Disc Brake (180/180)
rear derailleur Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed
shifters Shimano Deore SL-M6210, Single Click
crankset ACID MTB Hybrid Pro, 40T
cassette Shimano Deore CS-M6100, 10-51T
chain KMC e12
Cockpit

headset Acros AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
Stem CUBE Comfort Stem Pro, 35mm, Adjustable
handlebar CUBE Comfort Trail Bar HD, 720mm
grips ACID Travel Comfort
Wheels

wheelset ACID SLX 25, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
tyres Schwalbe Motion Big Apple, Performance, 55-622
Finishing kit

extras Frame lock, keyed alike
saddle ACID Sequence 180 Pro Bubble Foam
seat post SR Suntour NVX, 31.6mm
pedals ACID PP Trekking
front light ACID Front Light PRO-E 80 X-Connect, 12V, DC
rear light ACID Mudguard Rear Light PRO-E, 12V, DC
kickstand ACID FM Pure Kickstand
mudguards ACID 65 Integrated Carrier 3.0
bell Easy Bell
carrier ACID Integrated Carrier 3.0 CSR, CUBE Adapter Compatible
Product information

Structural Weight 150 kg
Maximum rider weight 120 kg
colour cedar´n´chrome
weight 28,2 kg
Carrier System IC 3.0 Integrated Carrier
lock 23-07148
